Mercury Revolution 4 Propeller

Name: Mercury Revolution 4 Propeller
Brand: Mercury Marine
SKU: 48-8M0151315
Price: 854.29 USD
Availability: InStock

$854.29

$1,067.86

Save $213.57

0.0

SKU: 48-8M0151315

Description

The Mercury Revolution 4 propeller is an incredible and versatile 4-blade propeller for a wide range of applications, known for a great hole-shot, staying hooked up without blowouts, and the ability to provide a low-speed plane off for slower tow sport activity.

Hub kit is sold separately. Please see the fitment information provided to select the correct hub kit for your application.
Enabled with 4-hole Performance Vent System (PVS) to allow optimal hole-shot customization.

Pitch:

15" Pitch

Rotation:

Right-Hand Rotation

Variant

Quantity:

Do you have a question?

Call us at (920) 788-0220 during our standard business hours to talk to an expert. Or send us a message (average reply time 12h).

Mercury Revolution 4 Propeller

$854.29

$1,067.86

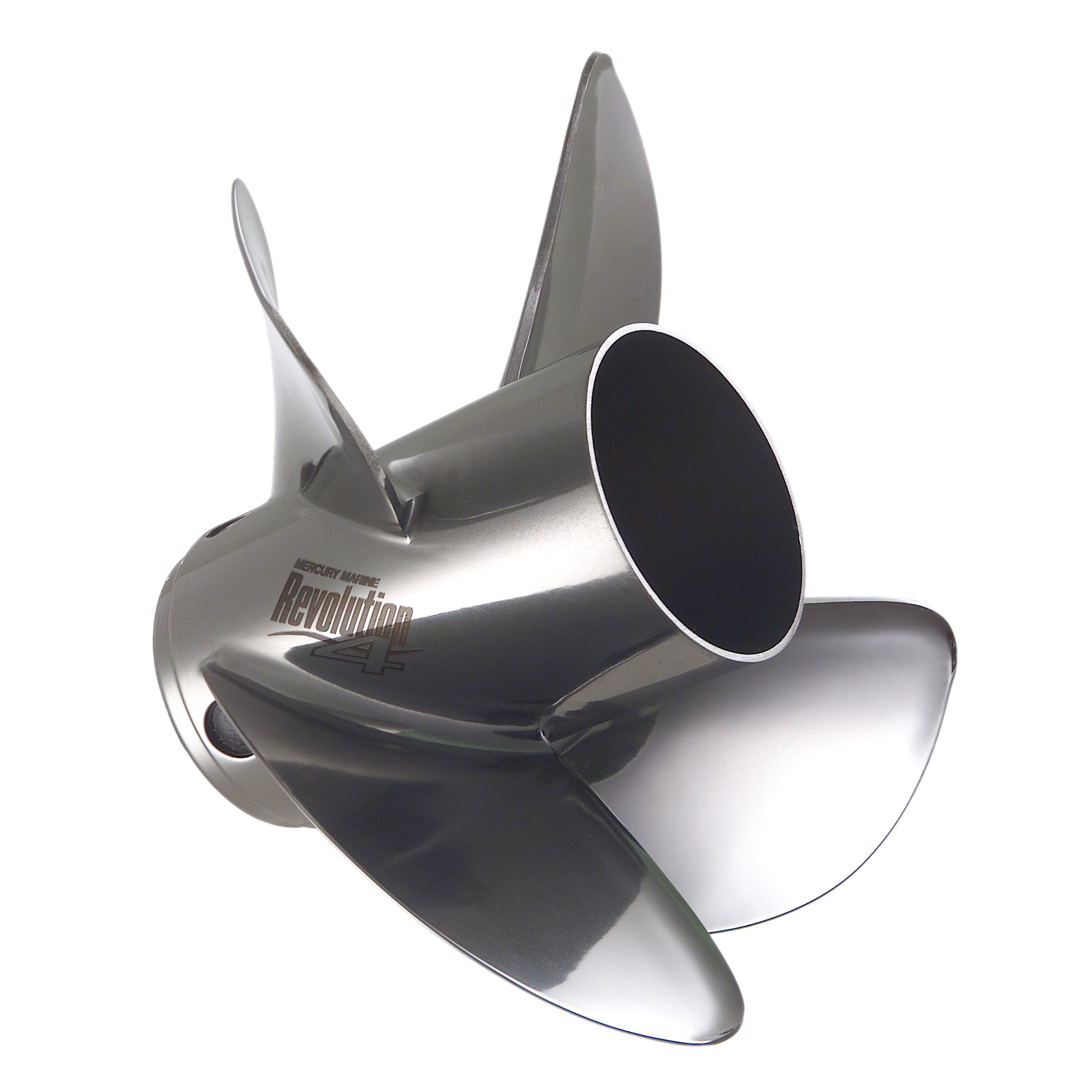

Revolution 4

4-Blade Stainless Steel

The Mercury Revolution 4 propeller is an incredible and versatile 4-blade propeller for a wide range of applications, known for a great hole-shot, staying hooked up without blowouts, and the ability to provide a low-speed plane off for slower tow sport activity.

Product specification

Be sure to select the correct hub kit for your application. If you have any questions about which hub kit you need to use please message us with the Year/Make/Modle of your motor.

Model

Mercury Revolution 4

Material

Stainless Steel

Boat Types

Aluminum, Bowrider, Fish-n-ski, Inshore Fishing, Multi-species, Offshore Fishing, Pontoon, Tritoon, Ski Boat, Sportboat / Performance Boat

Hub

Flo-Torq Hub Kit sold separately

Available Pitches

Will This Propeller Fit My Engine?

Propeller Fitment

With the interchangeable Flo-Torq hub kit the Revolution 4 propeller will fit a variety of makes and models, outboards and sterndrives.

Use our detailed fitment information to verify which hub kit you need to adapt the propeller to your application.

Our customer support is available Monday to Friday: 9am-5:00pm, and Saturday: 9am - 12:00pm CT.Average answer time: 12h

Contact Us

Mercury 90 - 115 Command Thrust Outboards (15-Tooth Spline)

90 - 115 Command Thrust - 2014 & Newer
Use Flo-Torq SSR 1.00" Hub Kit 8M0150151

Note: This will only fit the 90-115 HP Command Thrust gearcase, it will not fit a standard 90-115 HP gearcase

Mercury 135 - 400 HP Outboards

135-400 HP - 1978 & Newer
Use Flo-Torq II Hub Kit, 835257K1 - For all 2-Stroke outboards
Use Flo-Torq SSR 1.00" Hub Kit, 8M0150151 - For all 135-225 HP 4-Stroke outboards with a 1.0" prop shaft
Use Flo-Torq SSR Solid 1.00" Hub Kit, 8M0101602 - For all 225+ HP 4-Stroke outboards with a 1.0" prop shaft
Use Flo-Torq SSR HD 1.25" Hub Kit, 8M0101601 - For all 1.25" prop shaft applications

What size is my prop shaft? You can count the splines on your prop shaft to determine if you have a 1.00" or 1.25" prop shaft. If there are 15-splines, then you need a 1.00" hub kit. If there are 19-splines, then you have the larger 1.25" prop-shaft and must get the Flo-Torq SSR HD Hub Kit.

Mercury Mercruiser Alpha & Bravo One Sterndrives

For all engines with an Alpha or Bravo One sterndrives
Use Flo-Torq II Hub Kit 835257K1 - For all applications less than 300 HP
Use Flo-Torq II Solid Hub Kit 835258K2 - For all applications over 300 HP with a 1.00" prop shaft
Use Flo-Torq II Heavy Duty 1.25" Solid Hub Kit 840389K06 - For all applications with a 1.25" prop shaft

Non-Mercury Outboards (4.75" Gearcase)
