Mercury Trophy Plus Propeller

Q: Mercury 40 - 60 HP BigFoot & Command Thrust Outboards (15-Tooth Spline)

40-60 HP BigFoot/Command Thrust - All Years Use Flo-Torq SSR 1.00 Hub Kit 8M0150151 Note: This will only fit the 40-60 HP Command Thrust & Bigfoot gearcase, it will NOT fit a standard gearcase 40-60 gearcase

Q: Mercury 75 - 125 HP Outboards (15-Tooth Spline)

75-125 HP - 1978 & Newer Use Flo-Torq II Hub Kit 835257K1 - For all 2-Stroke applications Use Flo-Torq SSR 1.00" Hub Kit 8M0150151 - For all 4-Stroke applications

Q: Mercury 90 - 115 Command Thrust Outboards (15-Tooth Spline)

90 - 115 Command Thrust - 2014 & Newer Use Flo-Torq SSR 1.00" Hub Kit 8M0150151 Note: This will only fit the 90-115 HP Command Thrust gearcase, it will not fit a standard 90-115 HP gearcase

Q: Mercury 135 - 400 HP Outboards

135-400 HP - 1978 & Newer Use Flo-Torq II Hub Kit, 835257K1 - For all 2-Stroke outboards Use Flo-Torq SSR 1.00" Hub Kit, 8M0150151 - For all 135-225 HP 4-Stroke outboards with a 1.0" prop shaft Use Flo-Torq SSR Solid 1.00" Hub Kit, 8M0101602 - For all 225+ HP 4-Stroke outboards with a 1.0" prop shaft Use Flo-Torq SSR HD 1.25" Hub Kit, 8M0101601 - For all 1.25" prop shaft applications What size is my prop shaft? You can count the splines on your prop shaft to determine if you have a 1.00" or 1.25" prop shaft. If there are 15-splines, then you need a 1.00" hub kit. If there are 19-splines, then you have the larger 1.25" prop-shaft and must get the Flo-Torq SSR HD Hub Kit.

SKU: 48-8M0151389

$729.88

$912.35

0.0

Pitch: 17" Pitch

Description

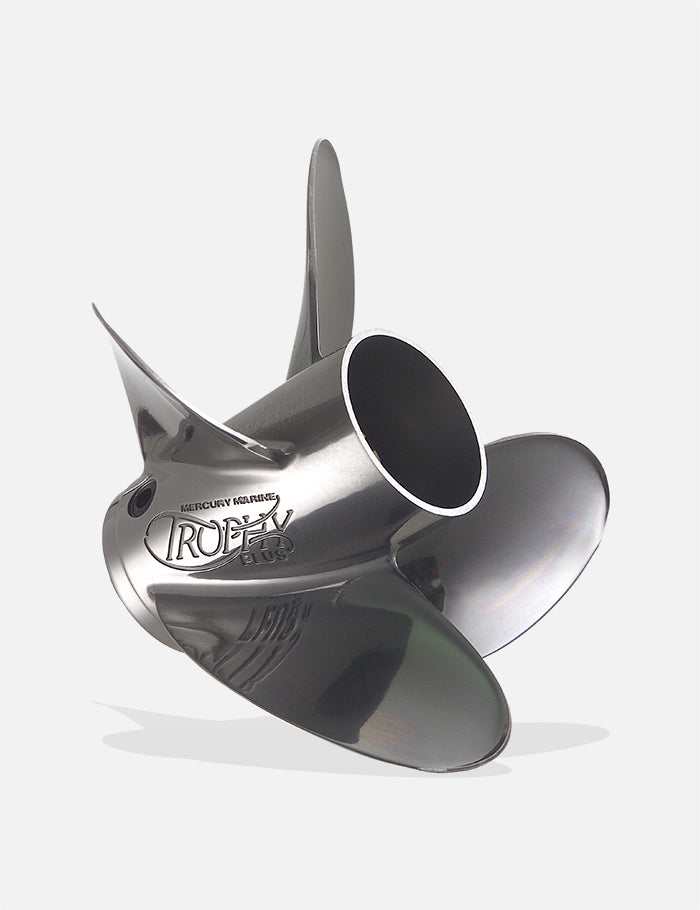

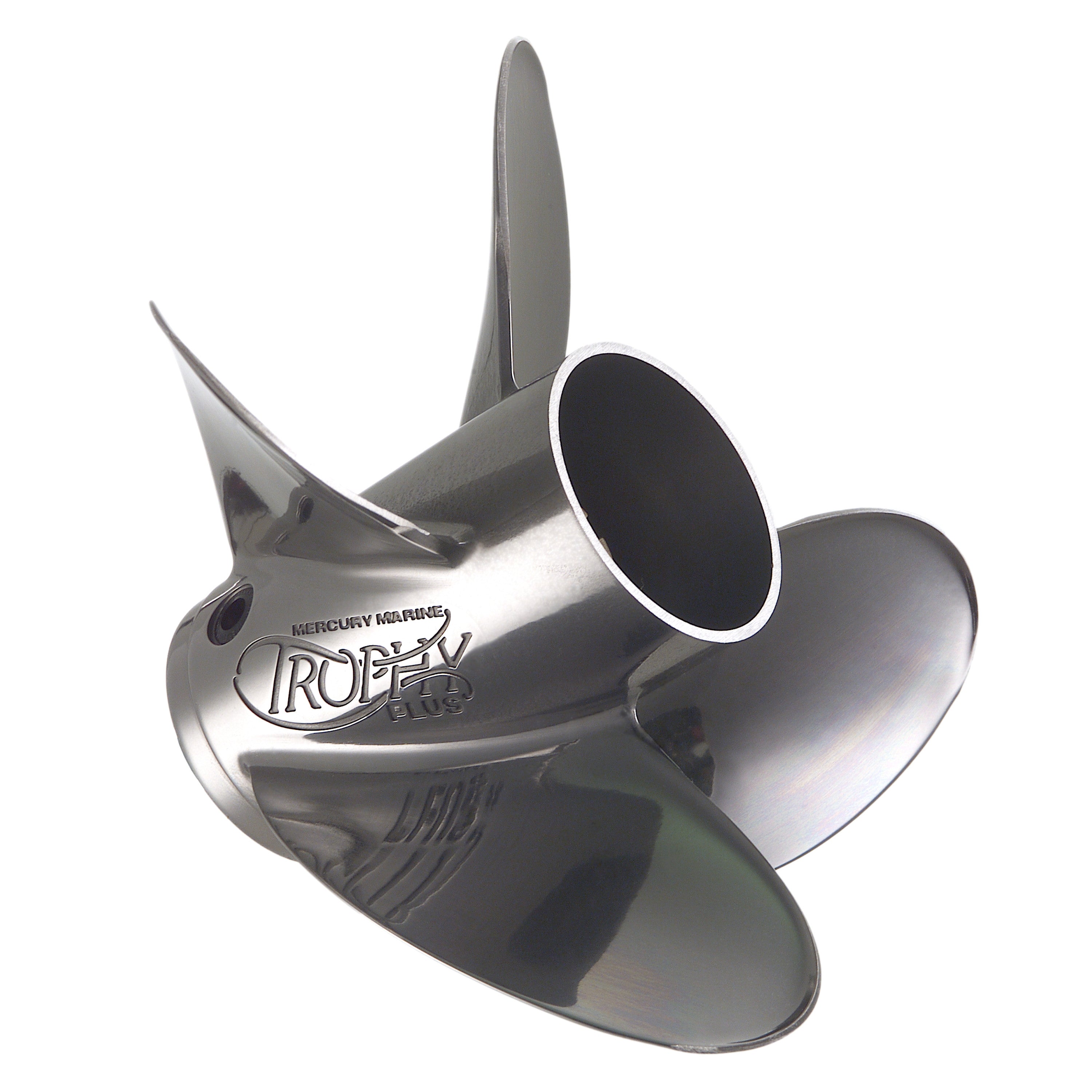

The Mercury Trophy Plus propeller is a 4-blade propeller known for great acceleration and top speed on 75-225 HP outboards (except V8). The 17-19P is designed for 75-115 HP outboards with the higher pitch ranges for 115-225 HP outboards.

Hub kit is sold separately. Please see the fitment information provided to select the correct hub kit for your application.
Enabled with 4-hole Performance Vent System (PVS) to allow optimal hole-shot customization.

Important Note:

The Trophy Plus has a 4.25" diameter barrel - when using on 4.75" gearcase applications and exhaust venting is excessive, install seal ring 878421

Warranty

Mercury Marine offers a 1-year limited warranty on all Mercury propellers. To determine warranty requirements for a specific item, please contact the manufacturer or contact us for assistance. Please note warranty processing may take 2-4 weeks and will be subject to Mercury Marine's policies and discretion. Mercury warranty does not cover defects determined to be caused by normal wear or due to customer negligence.

Do you have a question?

Call us at (920) 788-0220 during our standard business hours to talk to an expert. Or send us a message (average reply time 2h).

Mercury Trophy Plus Propeller

$729.88

$912.35

Description

Mercury Marine Trophy Plus Propeller

The Mercury Trophy Plus propeller is a 4-blade propeller known for great acceleration and top speed on 75-225 HP outboards (except V8). The 17-19P is designed for 75-115 HP outboards with the higher pitch ranges for 115-225 HP outboards.

Hub kit is sold separately. Please see the fitment information provided to select the correct hub kit for your application.
Enabled with 4-hole Performance Vent System (PVS) to allow optimal hole-shot customization.

Important Note:

The Trophy Plus has a 4.25" diameter barrel - when using on 4.75" gearcase applications and exhaust venting is excessive, install seal ring 878421

Model

Mercury Marine Trophy Plus Propeller

Rotation

Right-Hand Rotation (Clockwise)

Material

Stainless Steel

Prop Dimensions

13.8 x 17"
13.8 x 19"
13.8 x 21"
13.8 x 23"
13.8 x 24"
13.8 x 25"
13.8 x 26"

Will this propeller fit my motor?

Trophy Plus Propeller Fitment

The Mercury Marine Trophy Plus propeller requires a Flo-Torq hub kit for installation (sold separately). Listed below are the models of Mercury Marine outboards/sterndrives that the Trophy Plus propeller will fit, along with the corresponding hub kit necessary for installation.

Mercury 40 - 60 HP BigFoot & Command Thrust Outboards (15-Tooth Spline)

40-60 HP BigFoot/Command Thrust - All Years
Use Flo-Torq SSR 1.00 Hub Kit 8M0150151

Note: This will only fit the 40-60 HP Command Thrust & Bigfoot gearcase, it will NOT fit a standard gearcase 40-60 gearcase

Mercury 75 - 125 HP Outboards (15-Tooth Spline)

75-125 HP - 1978 & Newer
Use Flo-Torq II Hub Kit 835257K1 - For all 2-Stroke applications
Use Flo-Torq SSR 1.00" Hub Kit 8M0150151 - For all 4-Stroke applications

Mercury 90 - 115 Command Thrust Outboards (15-Tooth Spline)

90 - 115 Command Thrust - 2014 & Newer
Use Flo-Torq SSR 1.00" Hub Kit 8M0150151

Note: This will only fit the 90-115 HP Command Thrust gearcase, it will not fit a standard 90-115 HP gearcase

Mercury 135 - 400 HP Outboards

135-400 HP - 1978 & Newer
Use Flo-Torq II Hub Kit, 835257K1 - For all 2-Stroke outboards
Use Flo-Torq SSR 1.00" Hub Kit, 8M0150151 - For all 135-225 HP 4-Stroke outboards with a 1.0" prop shaft
Use Flo-Torq SSR Solid 1.00" Hub Kit, 8M0101602 - For all 225+ HP 4-Stroke outboards with a 1.0" prop shaft
Use Flo-Torq SSR HD 1.25" Hub Kit, 8M0101601 - For all 1.25" prop shaft applications

What size is my prop shaft? You can count the splines on your prop shaft to determine if you have a 1.00" or 1.25" prop shaft. If there are 15-splines, then you need a 1.00" hub kit. If there are 19-splines, then you have the larger 1.25" prop-shaft and must get the Flo-Torq SSR HD Hub Kit.

Non-Mercury Outboards (4.25" Gearcase)

Suzuki/Johnson 90-115 HP 4-Stroke (2001-2008) - Use Hub Kit #835283Q1
Suzuki/Johnson 100-115 HP 4-Stroke (2009 and newer), 140 HP 4-Stoke - Use Hub Kit #835283Q2
Suzuki 70-90 HP 4-Stroke (2009 and newer) - Use Hub Kit #835283Q03
Honda 75-90 HP (1998 and older) - Use Hub Kit #835277Q1
Honda 75-90 HP (1999 and newer), 115-130 HP - Use Hub Kit #835279Q2
Yamaha 50-100 HP - Use Hub Kit #835272Q1
Yamaha 115-130 HP - Use Hub Kit #835271Q2

Non-Mercury Outboards (4.75" Gearcase)

Evinrude/Johnson/OMC (1991 and newer) - Use Hub Kit #8M0119081
Evinrude/Johnson/OMC (1990 and older) - Use Hub Kit #8M0119082
Evinrude E-TEC G2 (2015 and newer) - Use Hub Kit #8M0107220
Honda 135-225HP - Use Hub Kit #835278Q1
Suzuki 150-300HP - Use Hub Kit #835281Q1
Yamaha 150-300 HP including SHO (2015 and newer) - Use Hub Kit #835274Q1
Yamaha 200-250 HP SHO (2014 and older) - Use Hub Kit #8M0075402
Yamaha 150-300 HPDI and VMAX - Use Hub Kit #835271Q2

Our customer support is available Monday to Friday: 9am-5:00pm., and Saturday: 9am-3:00pm. (CT)Average answer time: 2h

Mercury Flo-Torq Hub Kits

View all

Flo-Torq SSR 1.00" (8M0150151)

Flo-Torq SSR HR 1.25" (8M0101601)

Flo-Torq SSR Solid 1.00" (8M0101602)

Flo-Torq II w/ Bushing (835257K6)

Flo-Torq II (835257K1)

Mercury Trophy Plus Blog

Mercury Prop Blog

Mercury

Mercury Trophy Plus Propeller

For anglers and boat enthusiasts who demand a perfect blend of speed, acceleration, and precision handling, the Mercury Trophy Plus propeller is a game changer. Engineered with innovative design el...

Aug 2, 2024

Matt Vander Loop

0 comments

Mercury Trophy Plus Propeller

Precision on the water.

The Mercury Trophy Plus propeller sets the benchmark for speed, acceleration, and agility. Ideal for dynamic fishing environments the Trophy Plus propellers pairs well with fishing boats with mid-powered outboards. The Trophy Plus is most commonly used on Bass Boats, High-Performance Flats & Bay Boats, Lightweight Multie-Species & Walleye Boats, and Tunnel Hull Boats.

The Mercury Trophy Plus propeller features a 4.25-inch barrel and is compatible with both 4.25-inch and 4.75-inch gearcases. However, when using a 4.75-inch gearcase, the exhaust venting around the barrel can be excessive, and a prop seal ring might be necessary.
